In industries where precise temperature control is essential—such as chemicals, pharmaceuticals, food processing, and petrochemicals—the quality of thermal equipment directly influences product consistency and process safety. One such critical component is the limpet coil, a highly efficient external heating and cooling system for pressure vessels and reactors.
1. Importance of Temperature Control in Industrial Processes
In industries where chemical reactions are a core part of production—such as chemicals, pharmaceuticals, and petrochemicals—temperature plays a crucial role. In exothermic reactions, heat is released, while in endothermic reactions, heat is absorbed. Maintaining precise thermal conditions is essential to keep these reactions stable and productive. To meet this requirement, heating and cooling systems are widely used, with jacketed vessels being one of the most common solutions. These jackets may come in conventional, dimpled, or limpet coil designs, each offering varying degrees of heat transfer efficiency and structural benefits.
2. Why Limpet Coils Are Superior
Among these options, limpet coils stand out for their efficiency and design. Limpet coils encompass 1/2-round pipes welded onto the outer surface of the vessel, through which heating or cooling media flows. Their design ensures uniform fluid velocity and even thermal distribution across the vessel’s surface. Compared to conventional jacketed systems, limpet coils provide 2 to 3 times higher heat transfer coefficients for heating and 1.25 to 1.5 times higher for cooling. A double-start limpet coil further enhances functionality by enabling both heating and cooling within a single vessel. Additionally, this system increases fluid turbulence and velocity, improves temperature control, and strengthens the overall structure of the pressure vessel.
3. Advanced Manufacturing with Cold Roll Forming

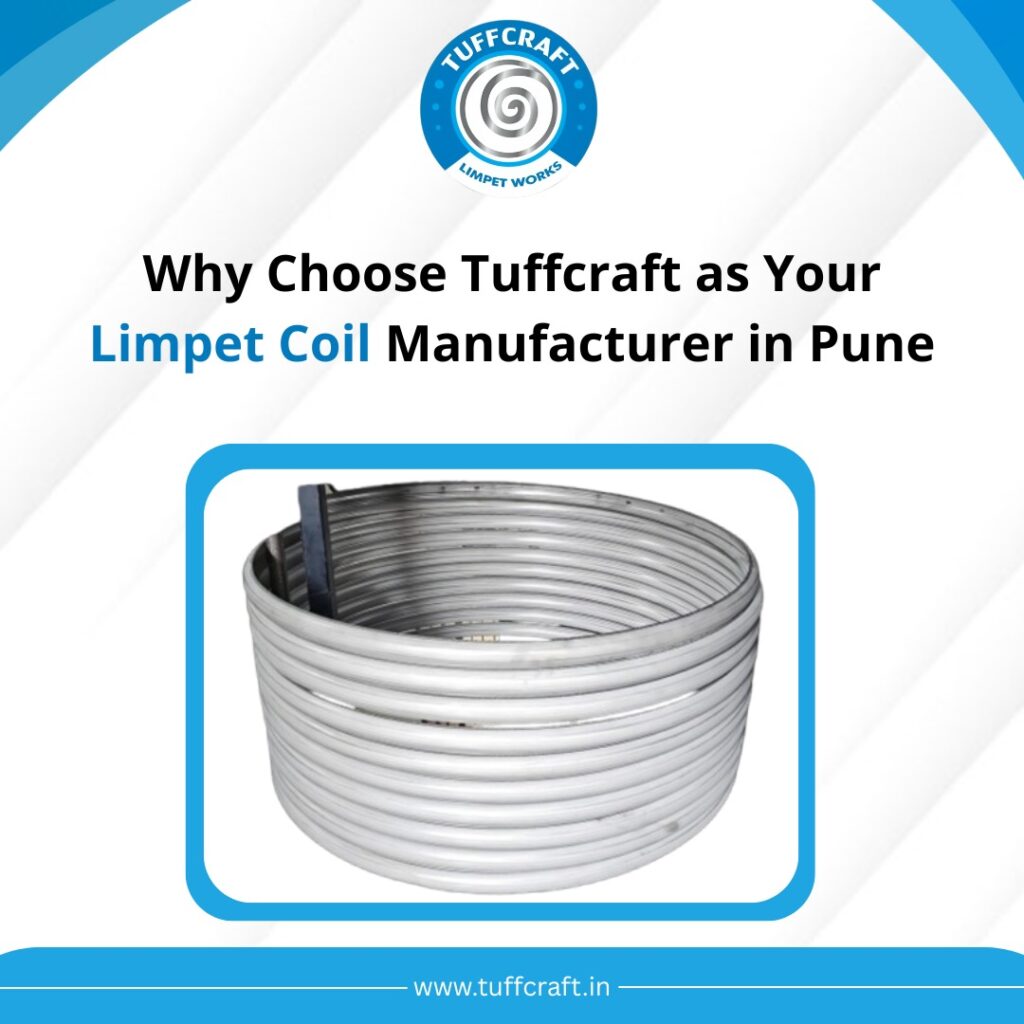

At TuffCraft, we use an advanced cold roll forming process to produce continuous limpet coils in a single piece with multiple turns. Unlike traditional welded designs that join multiple segments, our method forms the coil seamlessly, eliminating joints. Each coil is custom-built to fit the reactor’s diameter with an additional 5 to 10 mm for easy fitting. This approach results in stronger, cleaner, and more reliable coils that not only improve operational safety but also extend the lifespan of the reactor. By avoiding joint welds, our coils maintain the material’s corrosion-resistant properties, making them highly suitable for sensitive and high-performance applications.
4. Product Range, Materials, and Industry Applications
TuffCraft offers a wide range of limpet coil sizes to accommodate different industrial needs. Our standard product line includes:
- LMC 50 (2” NB) – 60.3 mm OD
- LMC 65 (2.5” NB) – 73.0 mm OD
- LMC 80 (3” NB) – 88.9 mm OD
- LMC 100 (4” NB) – 114.3 mm OD
- LMC 150 (6” NB) – 168.3 mm OD
All available in 3.0 to 6.0 mm wall thickness. We use premium-grade materials such as Stainless Steel (SA240 Type 304/304L/316/316L) and Carbon Steel (IS 2062, IS 1079, IS 10748, SA 516 Gr60/70). These coils are widely used across industries including chemical processing, bulk drug manufacturing, food and beverage, dairy, breweries, fertilizers, refineries, petrochemical plants, pesticides, paints, dyes, and cosmetics.
5. Quality Control and Inspection Protocols
Every limpet coil manufactured by TuffCraft undergoes a comprehensive quality inspection process. Raw materials are thoroughly checked using Vernier Calipers and Micrometers for width and thickness. Visual inspection is carried out to identify defects like edge burrs, rusting, camber, or surface damage. We also perform tests for chemical composition, mechanical properties, and microstructure. During production, the limpet coil’s dimensions are verified against technical drawings, and tolerances are measured as per SA 312 / EN 10162 standards. Before dispatch, each order is double-checked for quantity, packing, and compliance with purchase specifications. We ensure traceability by stenciling the size, quantity, MOC, and heat number directly on each coil and include a Raw Material Mill Test Certificate (MTC) with every shipment.
6. Key Advantages and Regional Reach
Our cold roll-formed limpet coils offer several distinct benefits: no butt joints, minimal work hardening, and reduced oxidation risk—all contributing to improved integrity and longer service life of the reactor. This process can reduce tagging and installation time by 60 to 80%, translating into lower labor and material costs. The clean, uniform finish also enhances the aesthetics of the final equipment. With a strong reputation as a trusted supplier of half-round pipe products, we have successfully served clients in Pune, Mumbai, Hyderabad, Ahmedabad, Vapi, Ankleshwar, Vadodara, and Bangalore, ensuring quick delivery with ready-stock availability in common sizes.
Limpet Coil Manufacturer in Pune
TuffCraft combines engineering expertise, premium materials, and cutting-edge manufacturing to deliver high-performance limpet coil solutions that meet the stringent demands of modern industries. If you’re looking for a dependable limpet coil manufacturer in Pune, TuffCraft is your proven partner for quality, precision, and timely delivery.
