Accurate temperature control is essential in industrial and chemical processes to provide reliable operation and preserve product quality. Whether in the case of exothermic reactions where heat is released or endothermic reactions where heat is absorbed, there must be stable thermal conditions. This is made possible by limpet coils as a reliable and efficient method of heating and cooling through external jacketed systems applied in various industries.
What Are Limpet Coils?

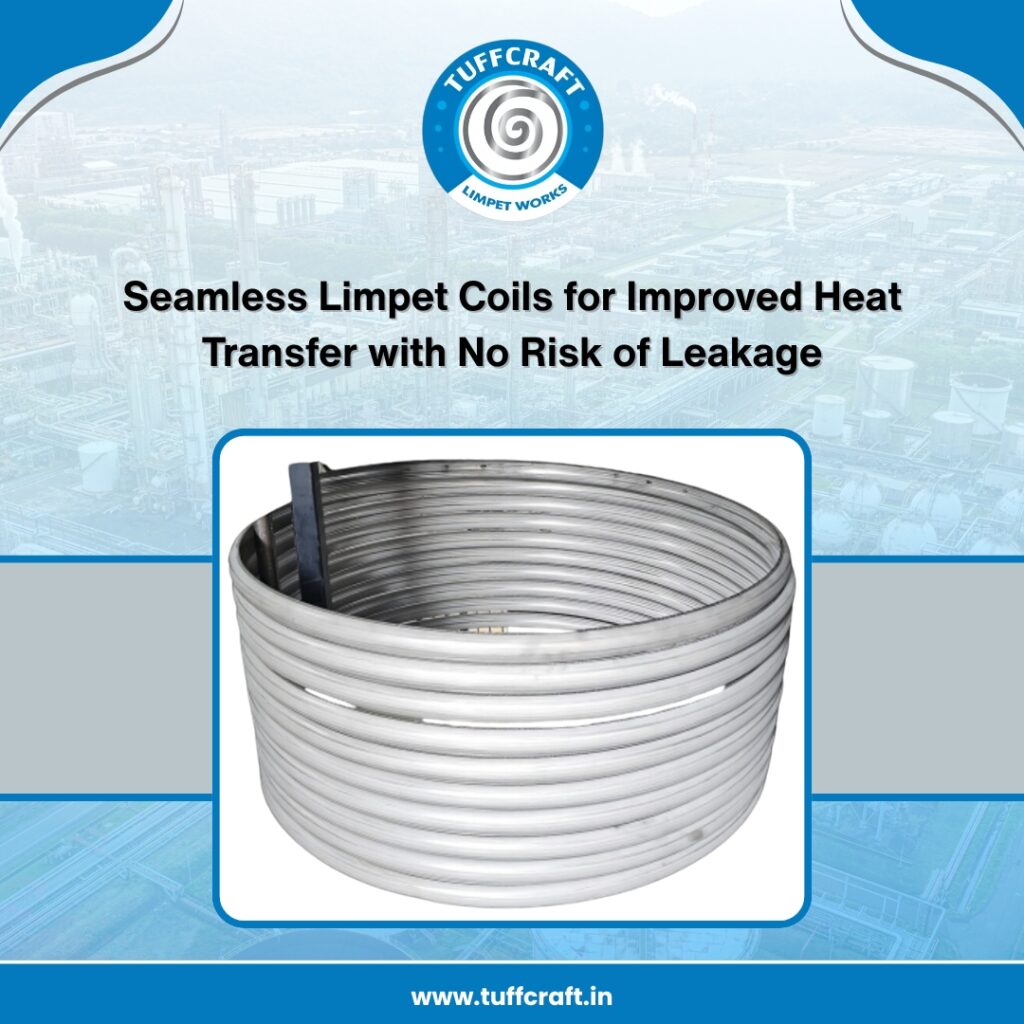

Limpet coils are half-moon-shaped pipes that are connected to the outside wall of a vessel to transport heating or cooling mediums like steam, thermic fluid, or chilled water. In contrast to traditional jackets, limpet coils ensure uniform flow velocity and distribute heat or cold evenly around the vessel, facilitating greater thermal exchange.
The Tuffcraft Advantage: Seamless and Continuous Limpet Coils
Tuffcraft produces limpet coils on a cold roll forming mill, which can produce single-piece coils continuously without welding individual parts. This innovative process has major benefits over conventionally welded coil construction.
✅ Exceptional Heat Transfer Effectiveness
•Boilers with our limpet coils offer 2 to 3 times higher heating efficiency and 1.25 to 1.5 times improved cooling performance against conventional jacketed systems.
•Two-start coil configurations accommodate heating and cooling in a single vessel, further increasing versatility and energy efficiency.
✅ Zero Leakage Risk
•An uninterrupted, joint-free design minimizes the likelihood of leakage, enhancing the safety and reliability of operation.
•Reduced number of welds also decrease the risk of structural wear, leading to more robust and durable vessels.
✅ Extended Equipment Life
•Minimizing weld stress and avoiding butt joints enhances the durability of the entire system, making it highly suitable for long-term industrial use.
Engineering Precision in Every Coil
Our limpet coils are specifically shaped to match the vessel diameter, with a 5 to 10 mm clearance for snug fit. Gradual roll forming process minimizes work hardening, resulting in stronger, more consistent welds upon assembly onto the vessel. As no butt welding or purging is involved, the corrosion-resistant properties of stainless steel are completely preserved.
Material of Construction (MOC)
• Stainless Steel: SA240 Type 304 / 304L / 316 / 316L
• Available in Carbon Steel variants including IS 2062, IS 1079, IS 10748, and SA 516 Grade 60/70
Industries Served
Tuffcraft’s limpet coils that are seamless are designed to suit a wide range of industries, providing vital thermal needs in sectors like:
• Chemical and Pharmaceutical Manufacturing
• Food and Beverage Processing
• Dairy and Brewing
• Refineries and Petrochemical Plants
• Fertilizers, Pesticides, Paints, and Dyes
• Cosmetics and Bulk Drug Production
Quality Control and Inspection
We follow a rigorous inspection procedure to maintain consistent product quality:
•Raw Material Inspection: The dimensions are checked using tools of high precision and materials inspected visually and tested for chemical properties, mechanical properties, and microstructure.
•In-Process Inspection: Coils are inspected with reference to technical drawings and dimension tolerances according to SA 312 / EN 10162 standards.
•Pre-Dispatch Inspection: Final inspections are conducted for quantity, identification, and adherence to order specifications.
All raw materials used in stainless steel are procured from Jindal Stainless Steel Ltd., and each shipment is accompanied by a Mill Test Certificate (MTC). Third Party Inspections (TPI) are also provided as requested. Each coil is stencil marked with size, quantity, material of construction, and heat number for absolute traceability.
Fast Delivery & Reliable Supply
With a readily available stock of routinely used raw materials and well-designed production processes, we provide delivery of limpet coils in 7 to 10 days. Tuffcraft has quickly gained a reputation as a consistent supplier of half-round pipes and limpet coils in major industrial hubs like Mumbai, Pune, Hyderabad, Ahmedabad, Vapi, Ankleshwar, Vadodara, and Bangalore.
________________________________________
Conclusion
Tuffcraft’s joint-free limpet coils provide a high-performance, cost-efficient, and reliable solution for industries requiring precise thermal regulation. Its superior heat transfer ability, joint-free construction, and long-term durability make it a safe bet for today’s industrial processes.
